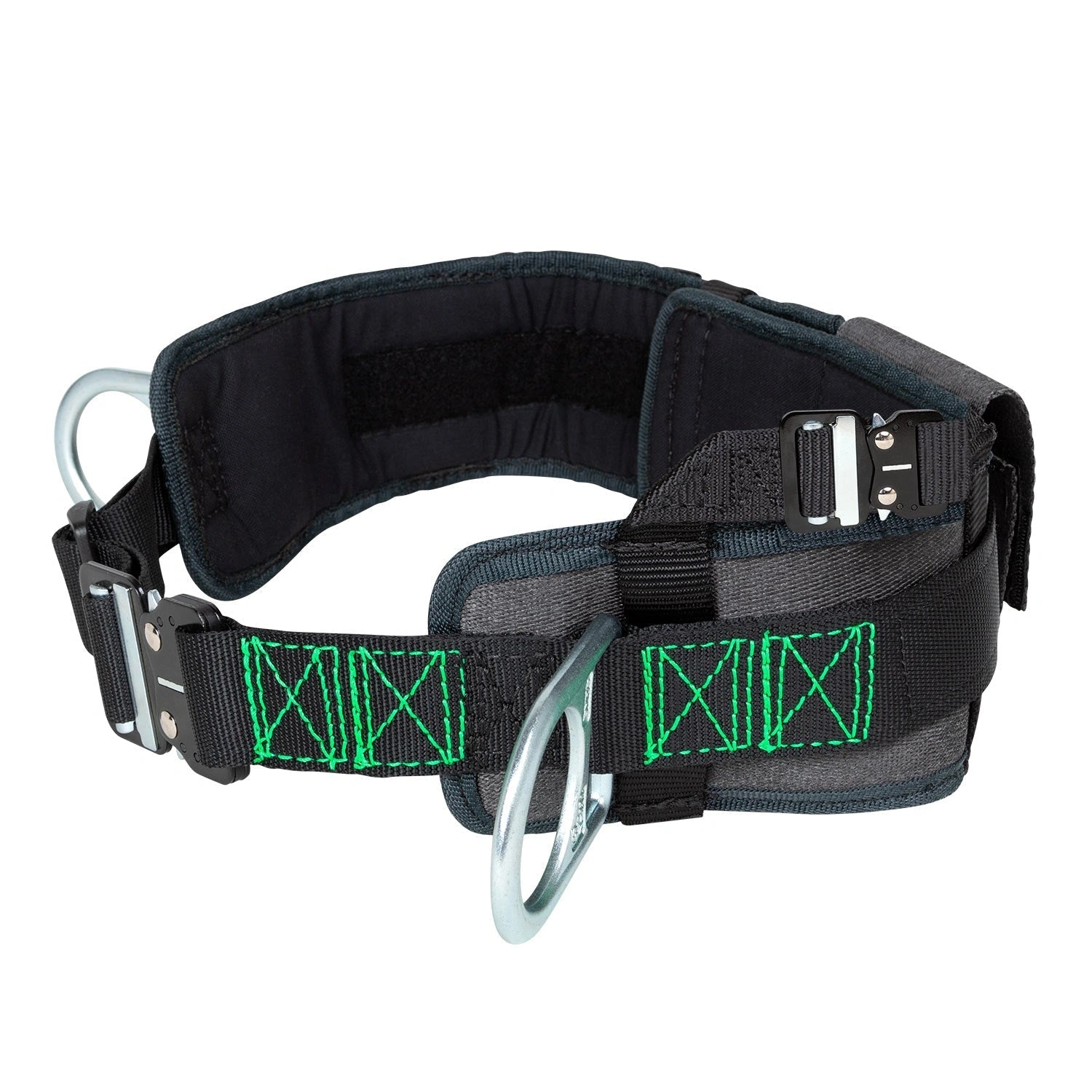

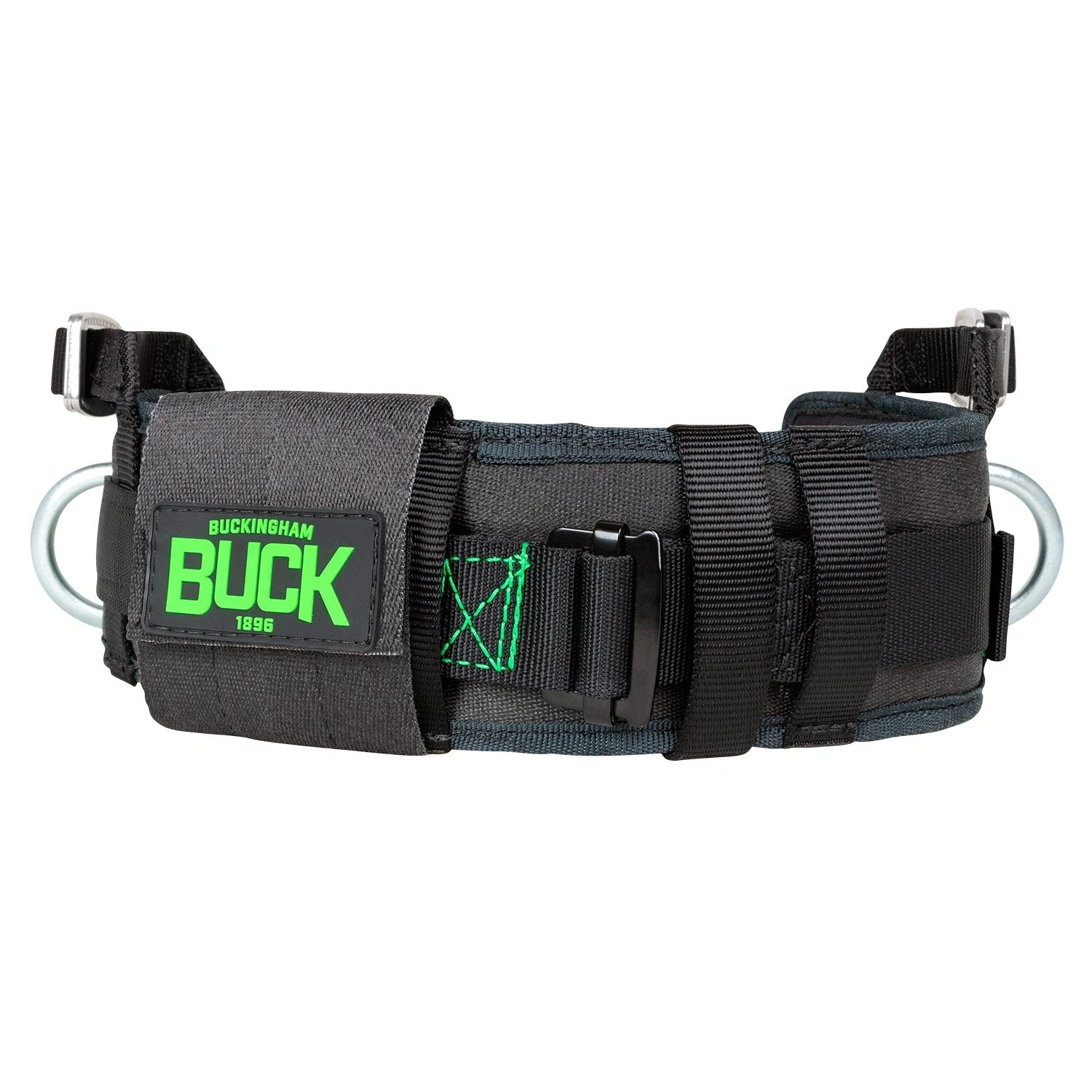

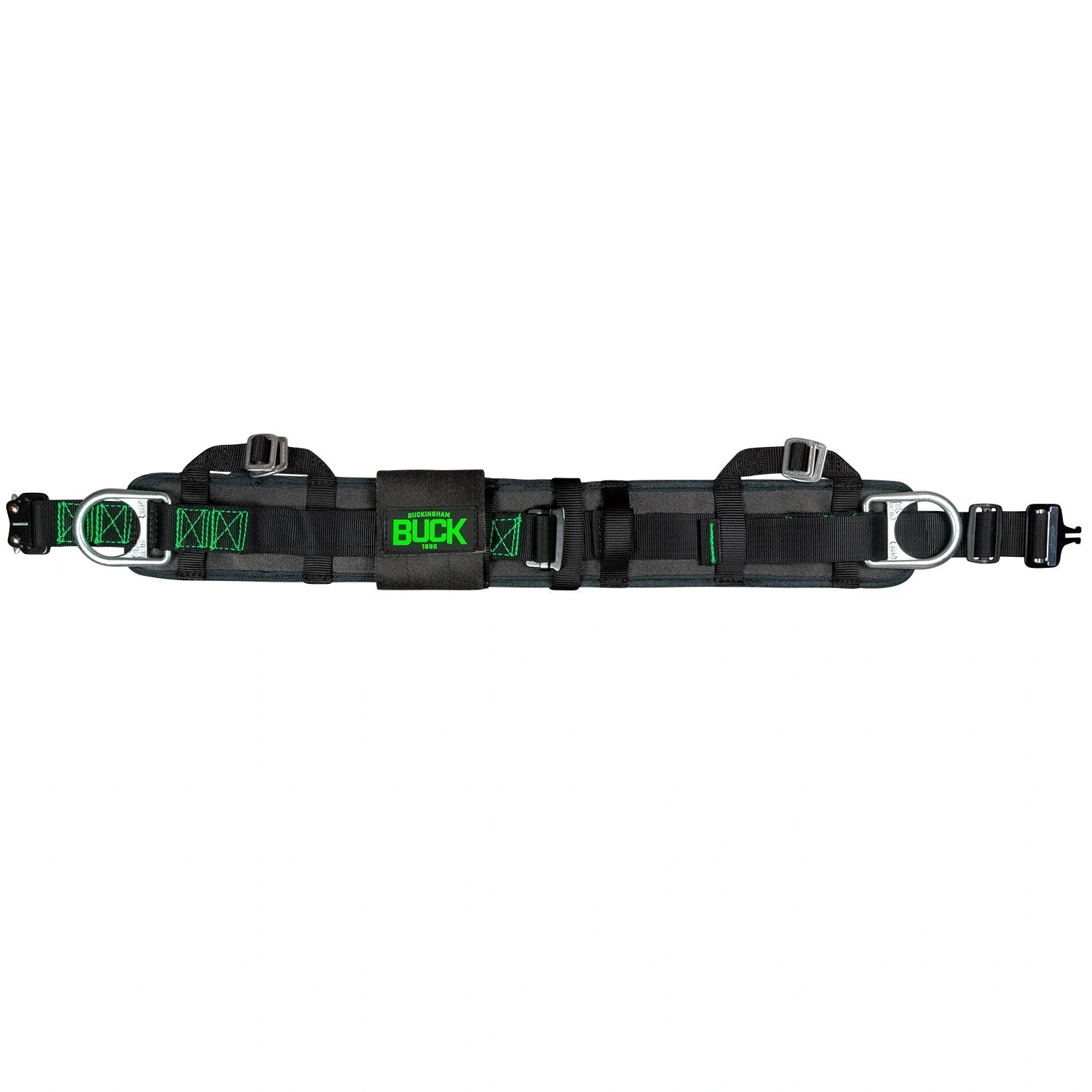

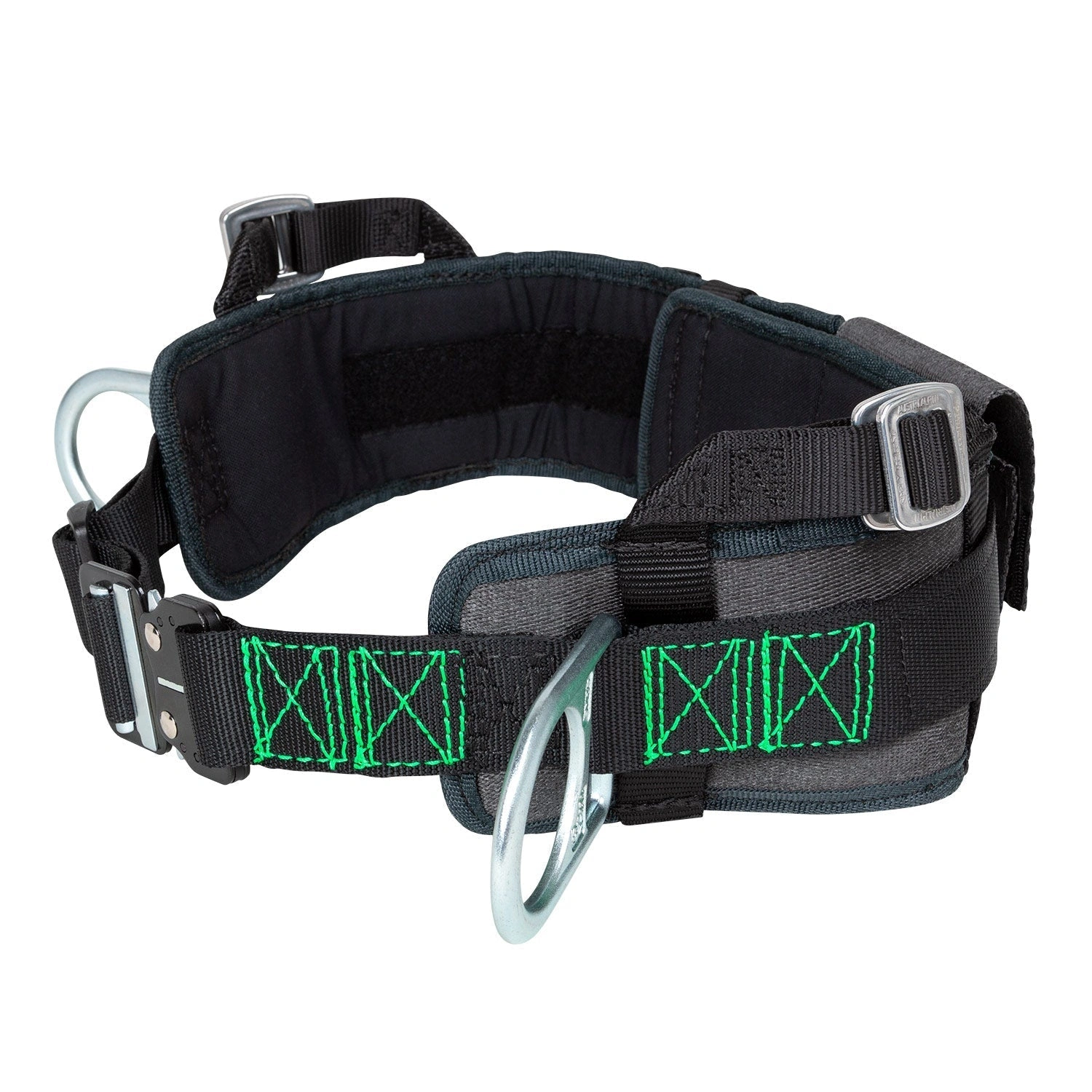

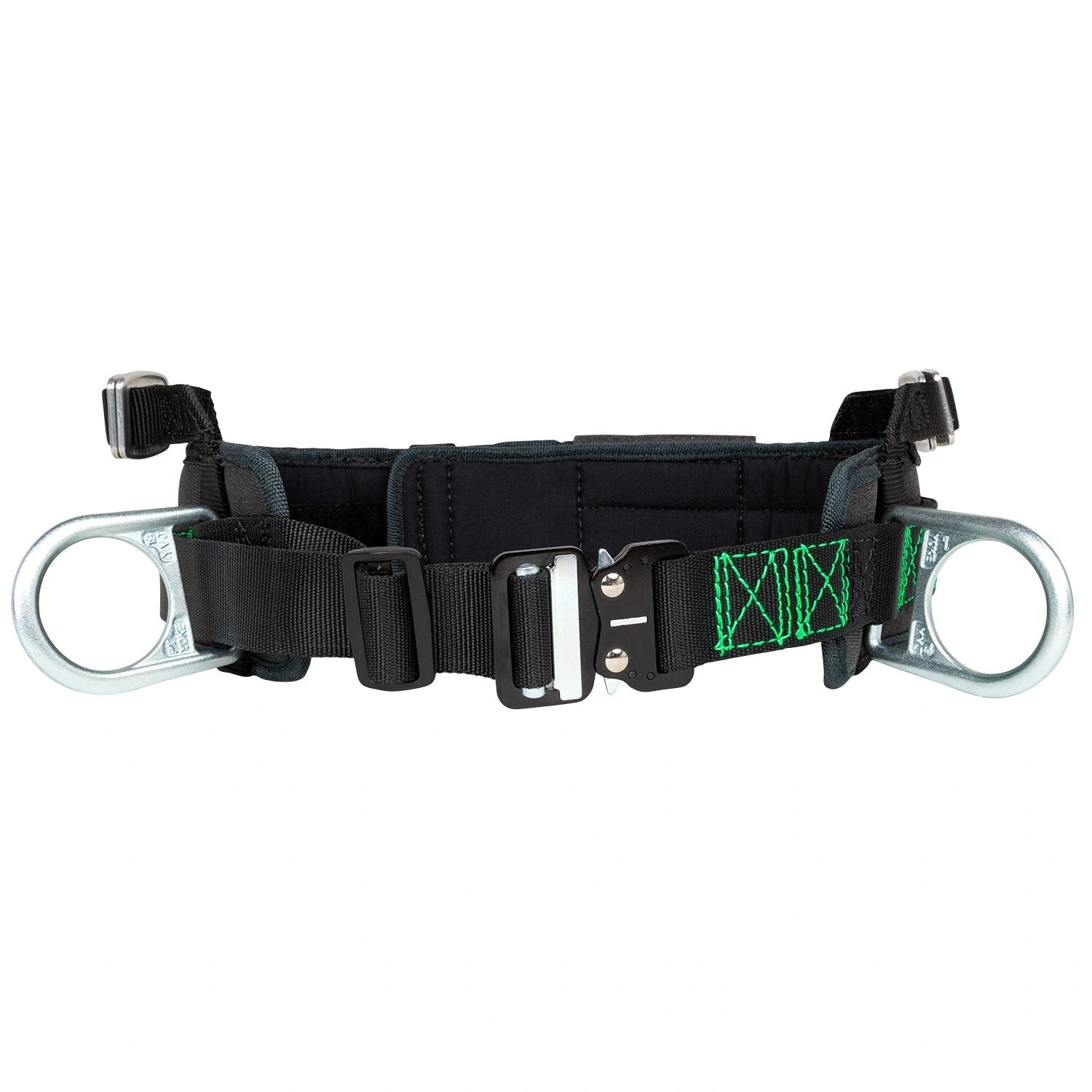

2-D TrueFit™ Belt - 1998C/1998CQ2
A patent-pending, fully adjustable, 2-D TrueFit™ belt that allows your dee size to be adjusted between sizes 20-30. This adjustable 2-D belt offers an adjustable dee piece/gut strap that allows the user to customize the size of the belt at any given moment.
Materials used in this product meets or exceeds ASTM F887 Electric Arc Performance Requirements.
This 2-D TrueFit™ Belt can be retrofitted directly to any ‘H’ or ‘X’ style full-body harness. We suggest pairing this TrueFit™ Belt with one of our popular TrueFit™ harnesses (H or X style), which will allow the user to create a fully adjustable body belt/harness combo.
Applications:
- Transmission tower
- Lattice tower
- Ladder
- Bucket truck (when retrofitted to applicable harness)
Other features:
- Quick connect belt strap buckle for quick and easier donning.
- Interlocking buckles that allow the user to retrofit the belt to a harness.
- Steel dee rings.
- Lightweight, just 2.5 lbs.!
- A narrow back pad measuring 4 ¼” wide.
- The back pad features 2 layers of FR material that is constructed with hook and loop connecting material that aids in the dee size adjustment.
Product Specifications:
| Product Number: | 1998C / 1998CQ2 |
| Product Name: | 2-D TrueFit™ Belt |
| Buckle Type: | Quick Connect Buckle |
| Buckle Material: | Aluminum |
| Number of D-rings: | 2 |
| D-ring Material: | Steel |
| Adjustable: | Yes (Dee size is able to adjust between 20-30) |
| Belt Strap Material: | Nylon Web |
| Belt Strap Width: | 1.75″ |
| Back Pad Material: | Navajo w/ conlour foam |
| Back Pad Width: | 4.25' |
| Accessory Loops: | No |
| Tape Thong: | No |
| Removable Belt Strap: | No |
| Harness Attachment: | Yes - Interlocking Buckles / Quick Connect Buckles |
| Floating Suspension Ring: | No |
| Full Floating Dee Rings: | Yes |
| Tool Loops: | No |
| Pouch Tabs: | No |
| Thread / Stitching: | Nylon |
| Product Type: | Work Positioning |
| User Weight Capacity: | 350 lbs. (when fully equipped) |
| Weight: | 2.5 lbs. |
| Standards: | ASTM F887 & Applicable OSHA Standards |
| Made in the USA?: | Yes |
Instructions & Warnings:
Fully Adjustable Two D-Ring Truefit Belt Instructions & Warnings
