5-in-1 Mini Impact Socket
Description:

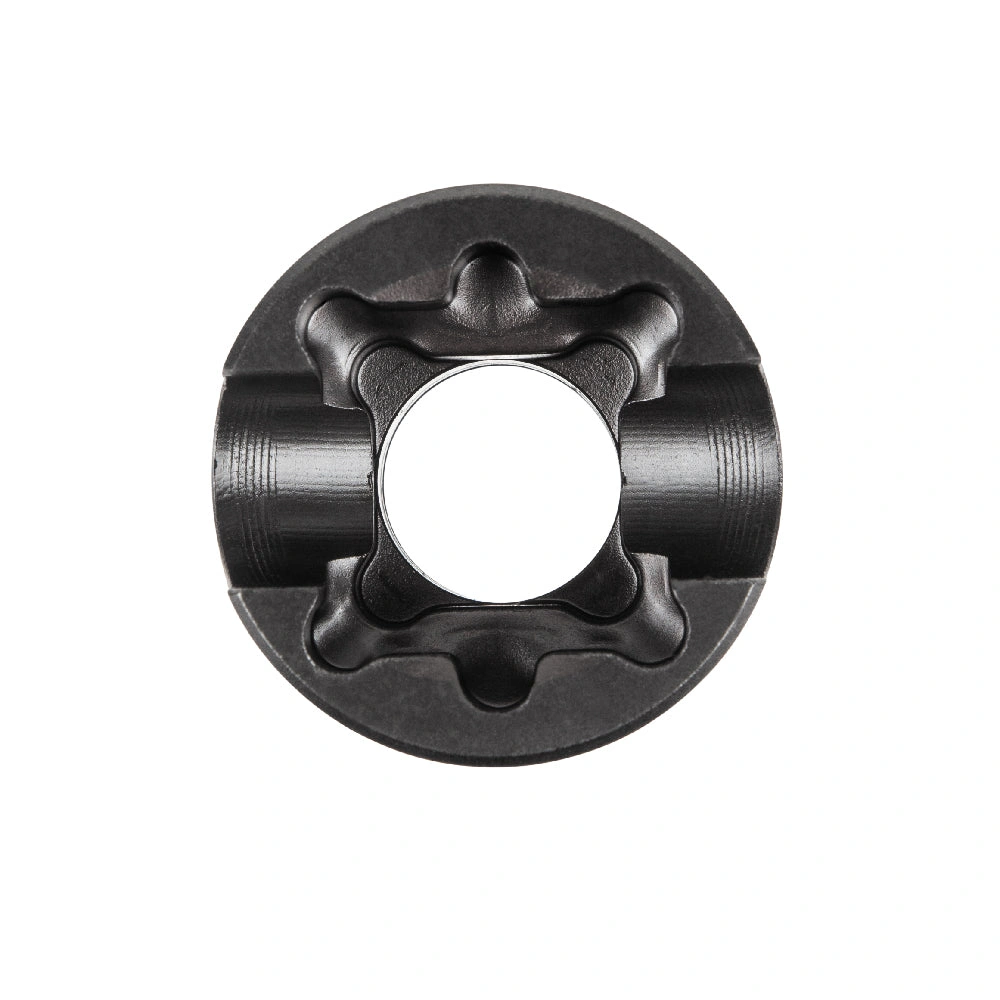

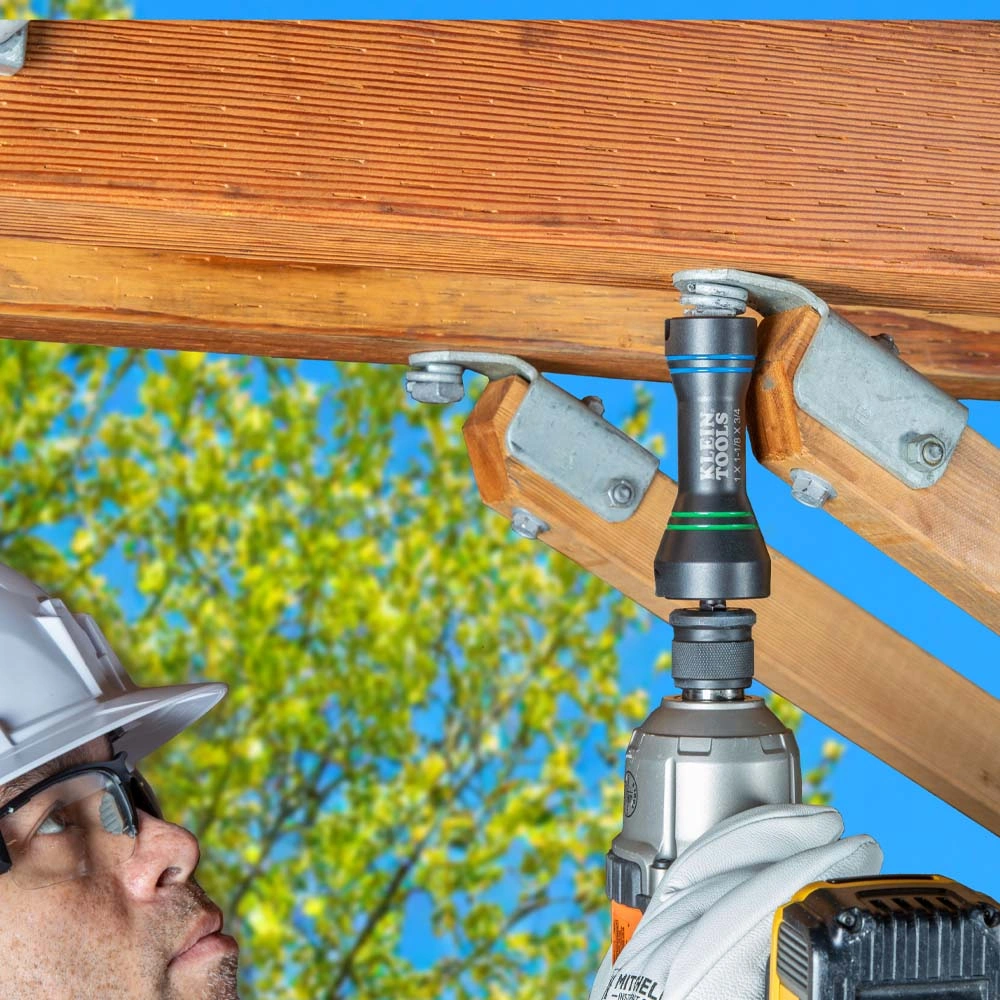

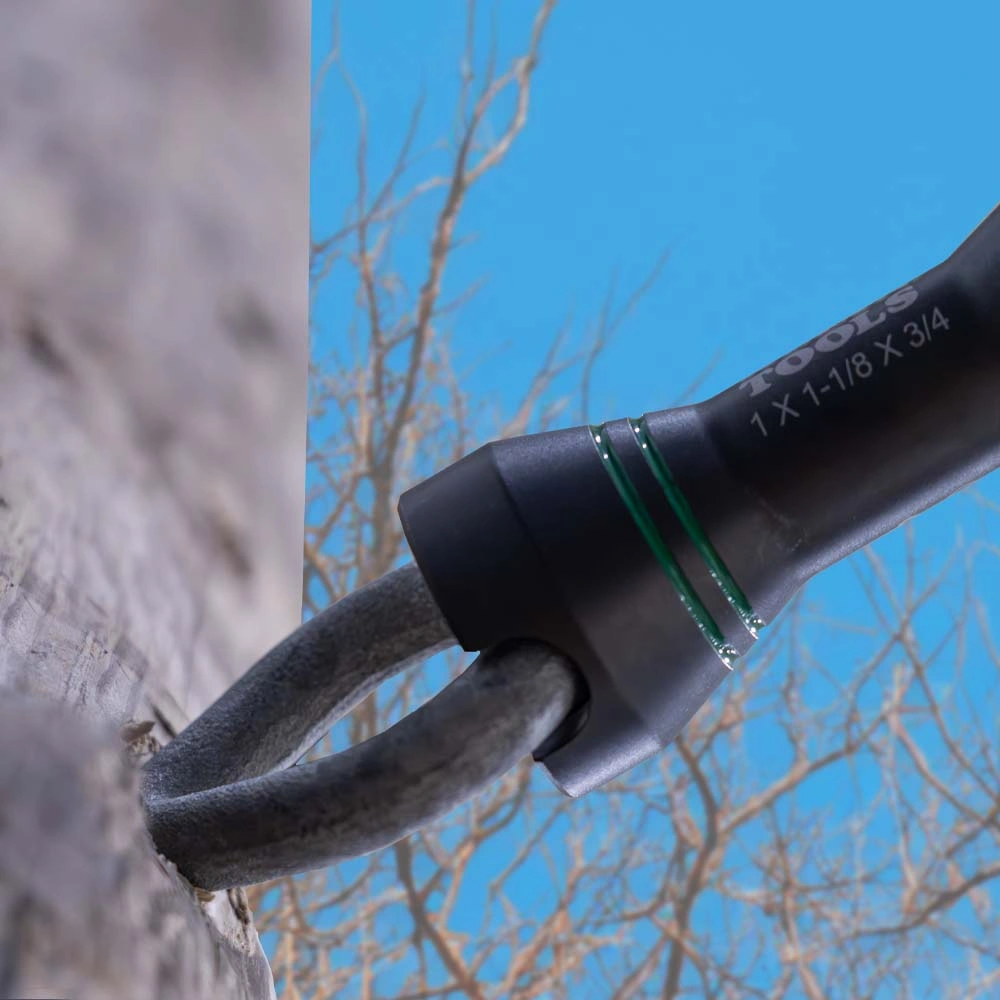

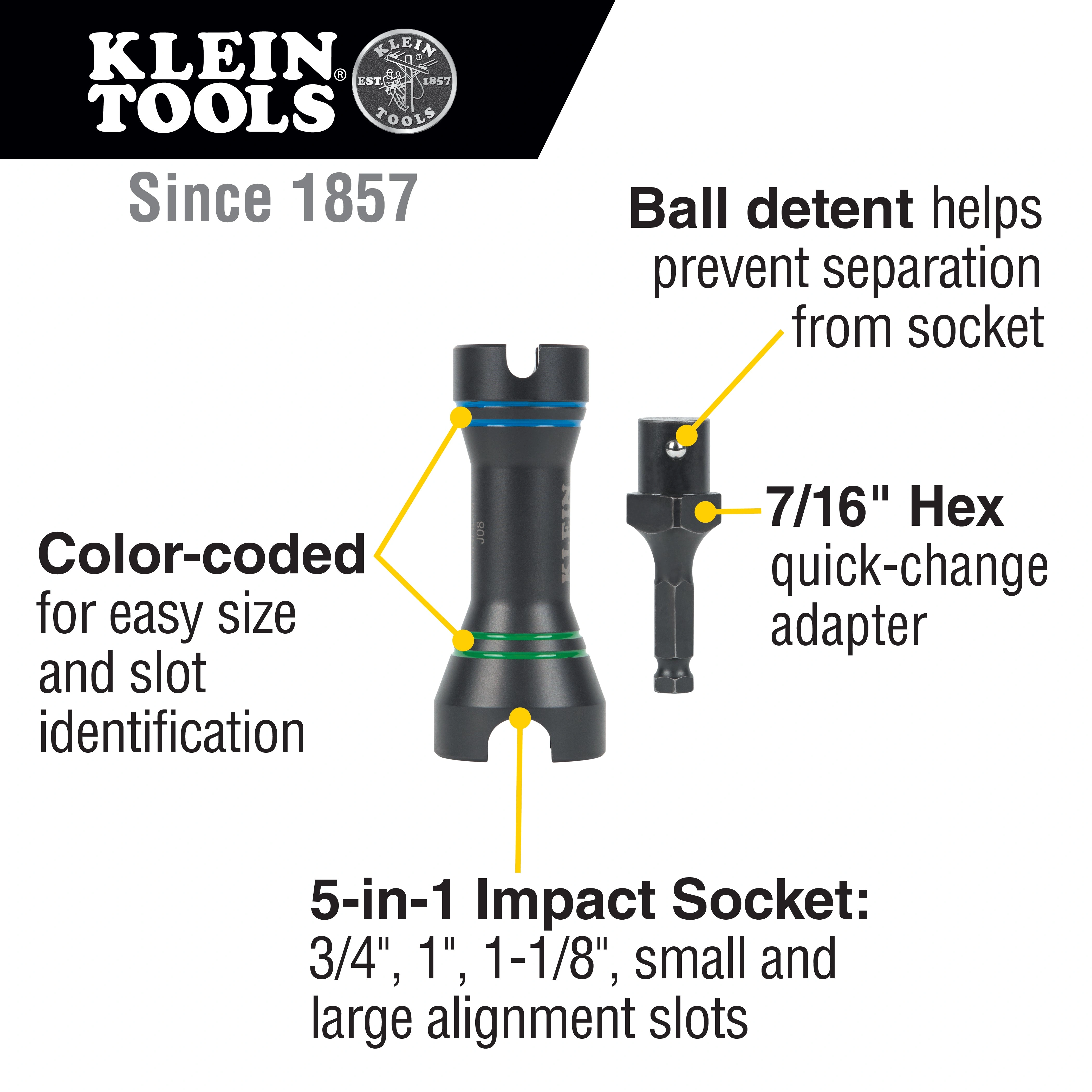

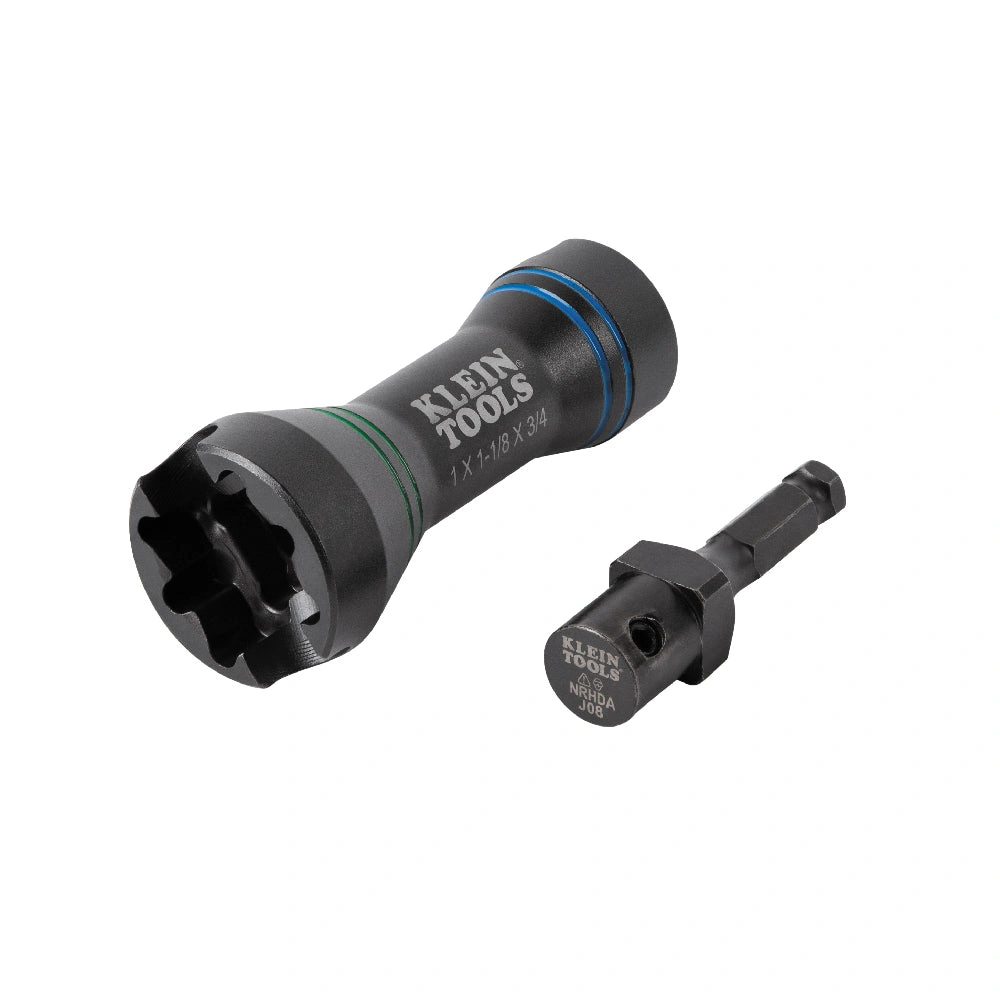

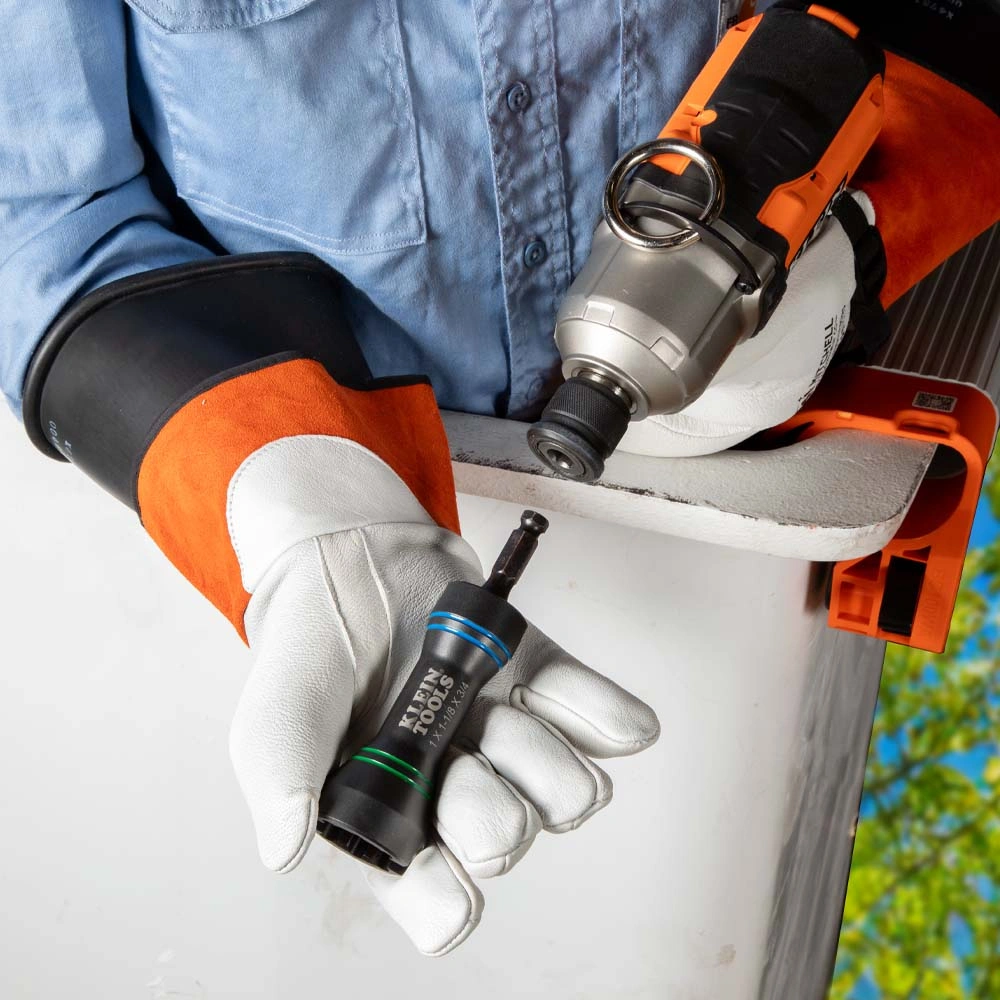

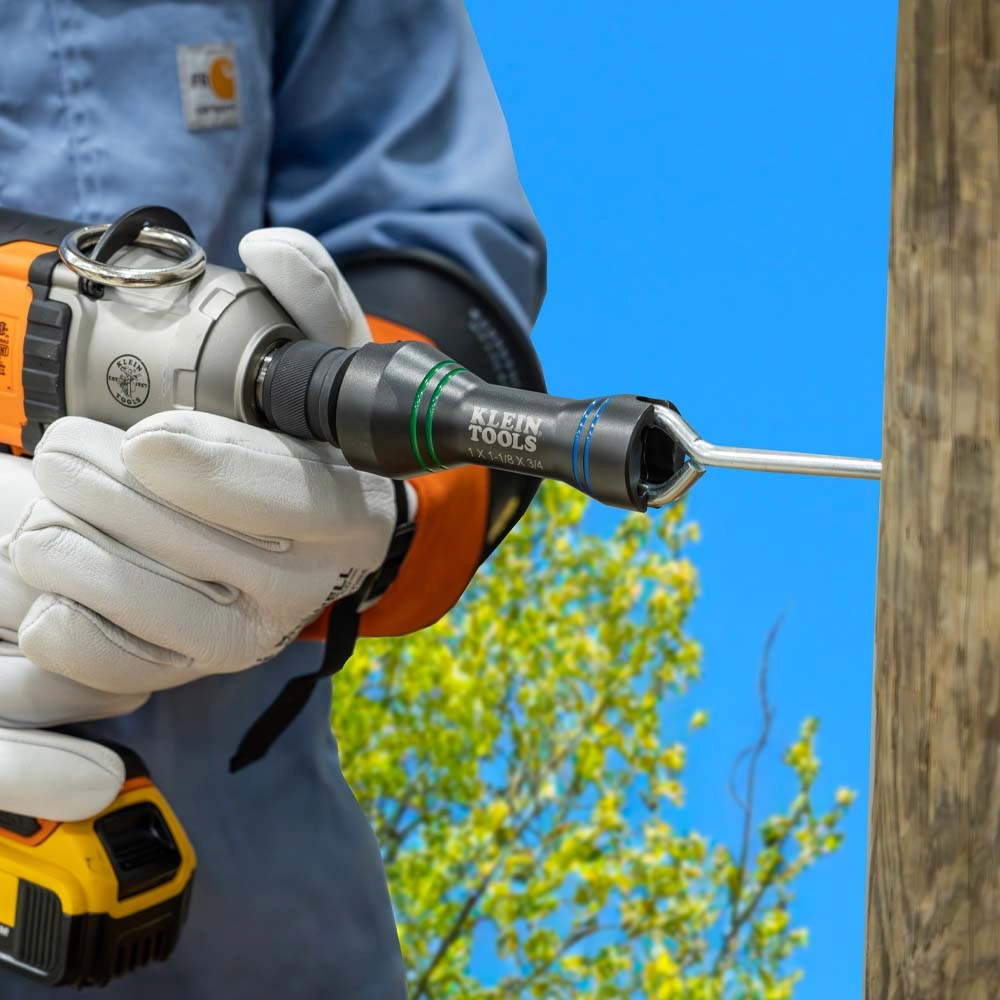

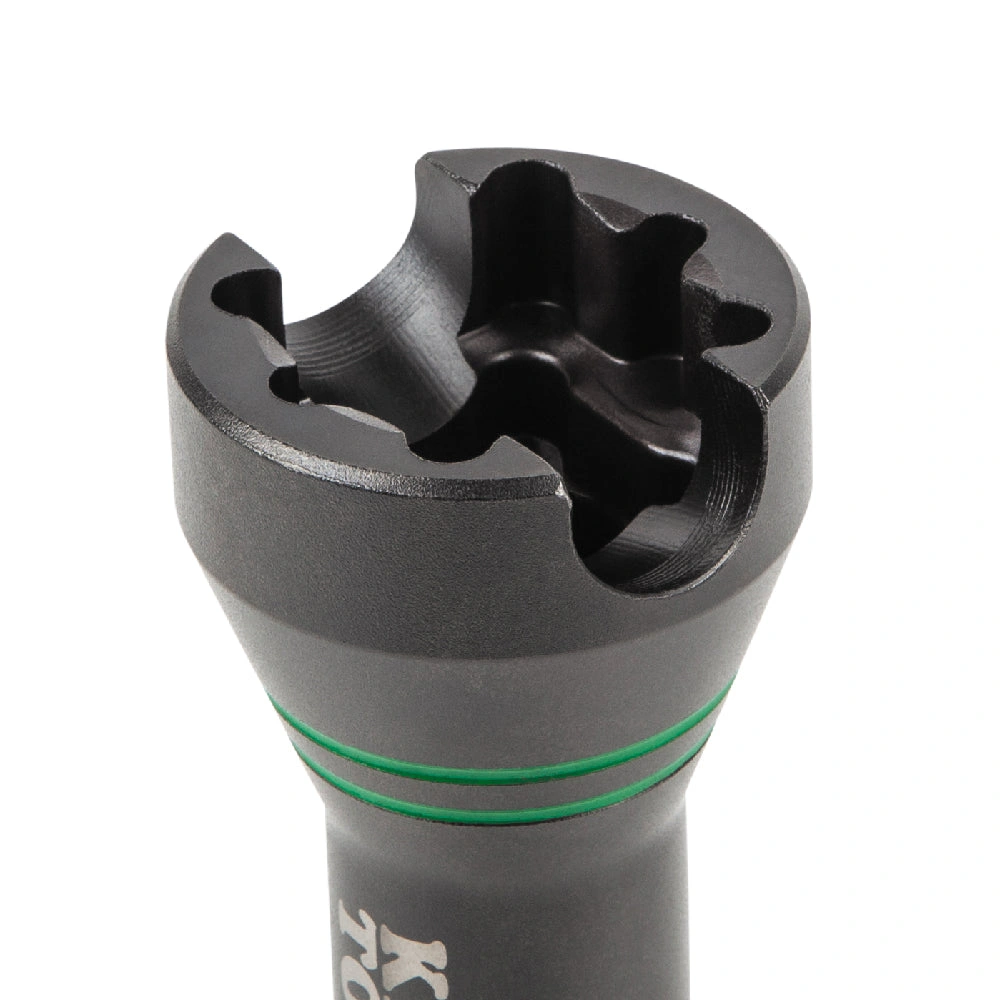

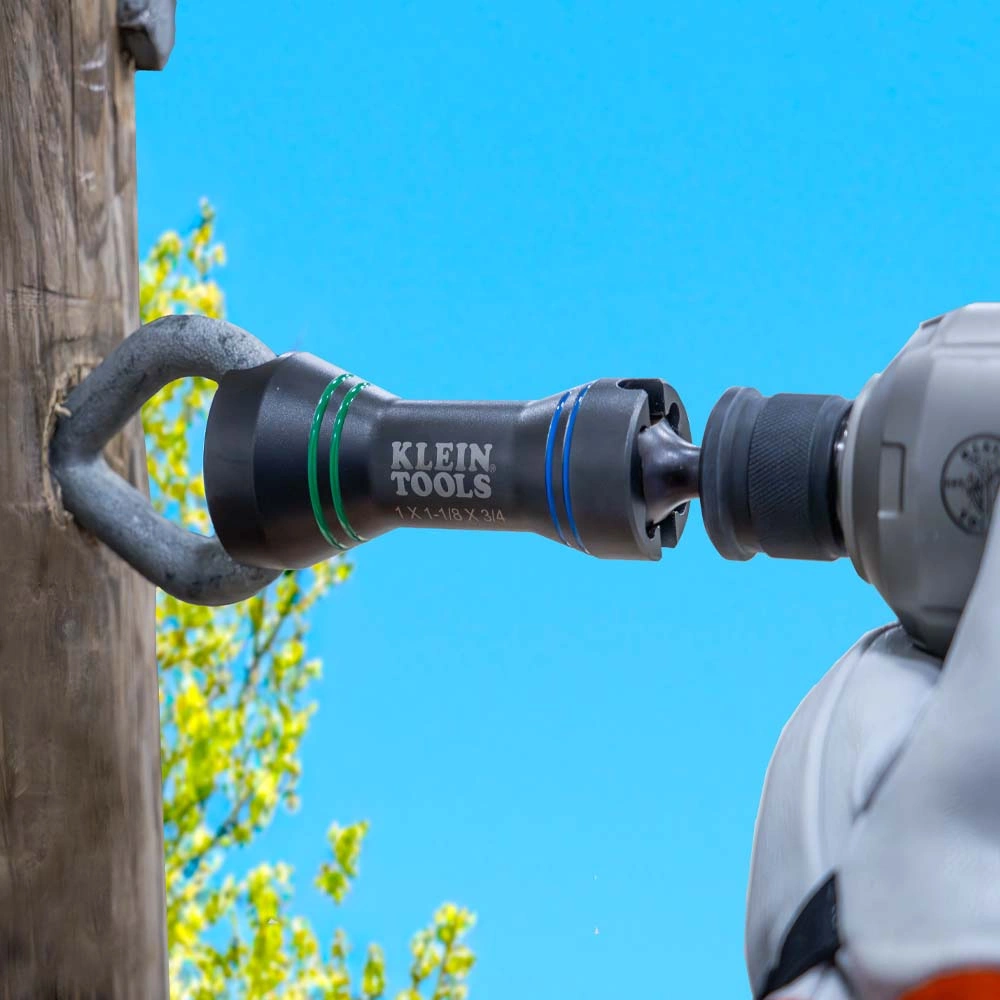

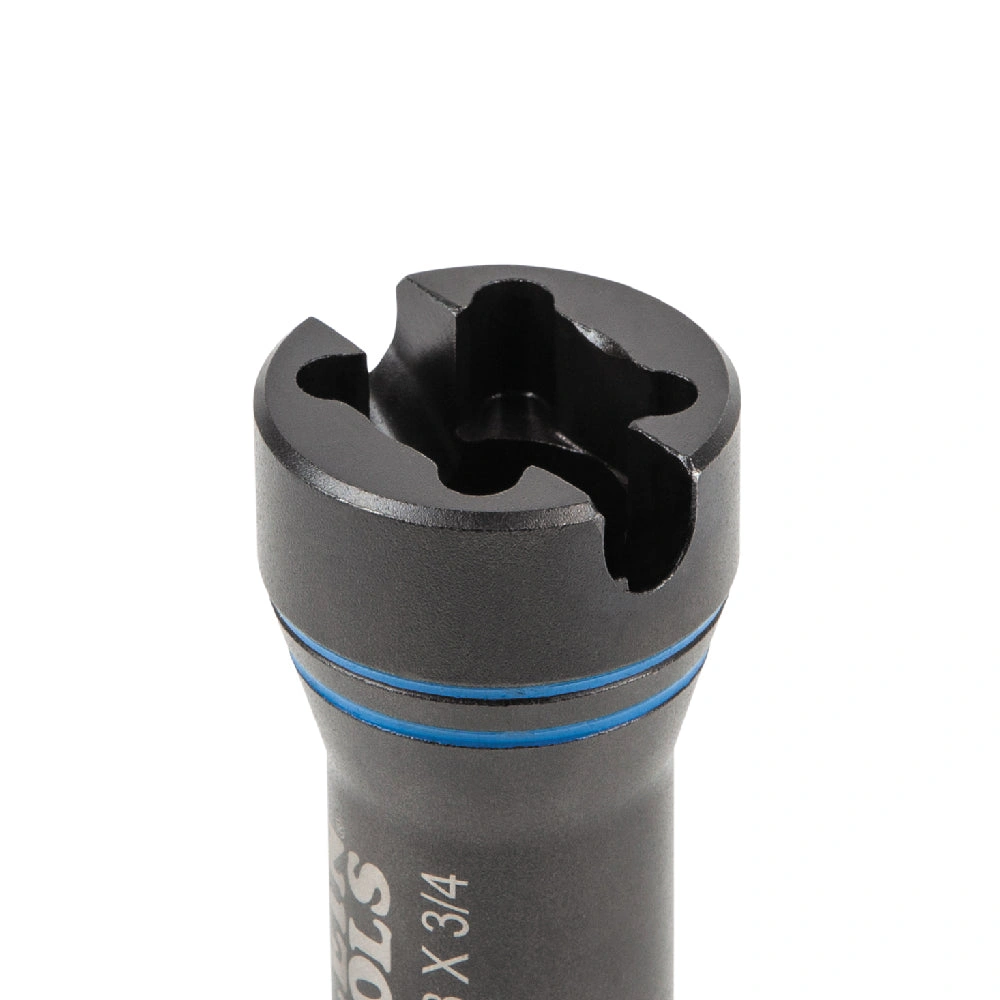

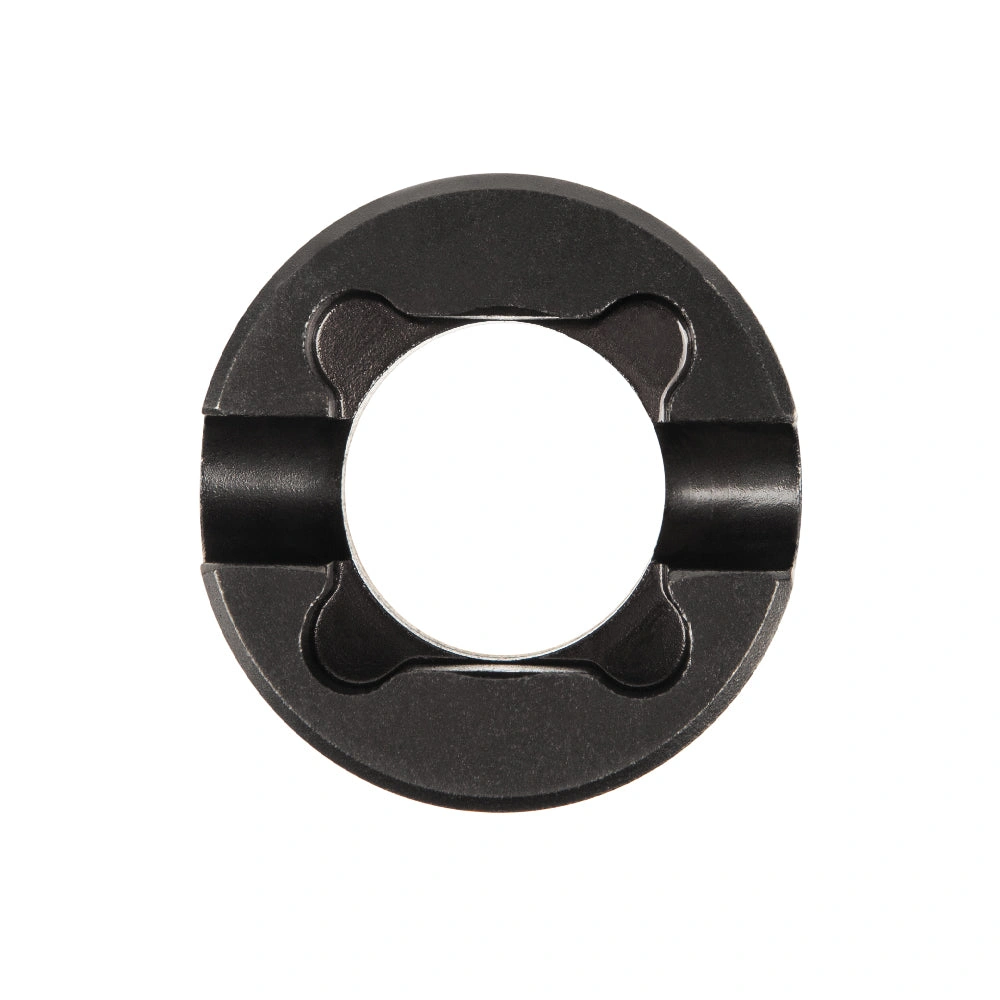

The 5-in-1 Mini Impact Socket includes three square socket sizes - 3/4-Inch, 1-Inch and 1-1/8-Inch - as well as small and large alignment slots. These slots allow for easy tightening and loosening of most pole hardware, including pole steps, drive hooks, eye bolts, and J-hooks. The socket has a 13/16-Inch diameter, and its compact, hollow shaft (measuring 4-1/2-Inch or 11.4 cm) assists linemen in reaching around poles. The socket also comes with a 7/16-Inch hex quick-change adapter, which reduces weight and improves ease of use for utility workers. Additionally, the fine-tuned ball tip provides improved retention, minimizing drops. The socket is impact rated and color-coded with double lines to identify its slotted feature, and a single line for its socket size. A replacement adapter (Cat. No. NRHDA)
Specifications:
| Specification | Value |
|---|---|
| Type | Impact Rated |
| Application | Hot-Line Clamp and Pole Hardware Installation and Removal |
| Special Features | Large and Small Slots; Easily Switch Between Sizes Without Removing Your Gloves |
| Overall Length | 4.5’’ (11.4 cm) |
| Overall Height | 1.9’’ (4.8 cm) |
| Overall Width | 1.9’’ (4.9 cm) |
| Material | Steel |
| Drive Size | 7/16’’ Hex |
| Socket Size | 3/4’‘, 1’‘, 1-1/8’’ |
| Number of Points | 4 |
| Standard | ASME B107.110 |
| Case Included | No |
| Included Components | Impact Socket, Adapter |
| Number of Pieces | 2 |
| Weight | 1.36 lb (0.6 kg) |
| UPC | 092644652721 |
